Product Description

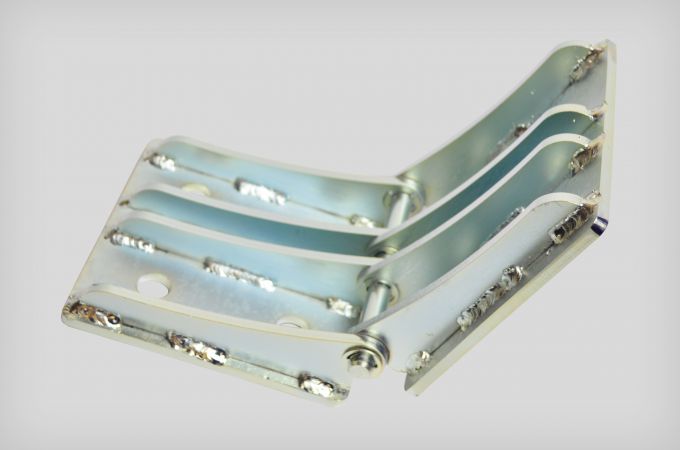

The Flush Hinge’s profile is very limited in both the open and closed position. When open the hinge creates a flat level space that can be used for walls, floors or ceilings. In the closed position the Flush Hinge maintains a 1 1/4” spacing to contain the scenic material

Technical Highlights

Model: MT-HG-F-06-12

Standard Material: A36 Low Carbon Steel
Standard Finish: Zinc Clear
Available Finish(es): Powder Coatings 21-25
Size: 2.5 “x 6.5″ x 6” /
6.35 x 16.51 x 15.24 cm
Weight: 8.40 lbs.
3.81 kg
Hole Size: 11/16″ – Fits 5/8″ Bolt
Recommended Hardware: 5/8″ – 2″ Grade 8 Bolt Set
Recommended Tools: ModTruss Tool Kit
